IRFSL4410Z N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRFSL4410Z *.

📥 Download Datasheet

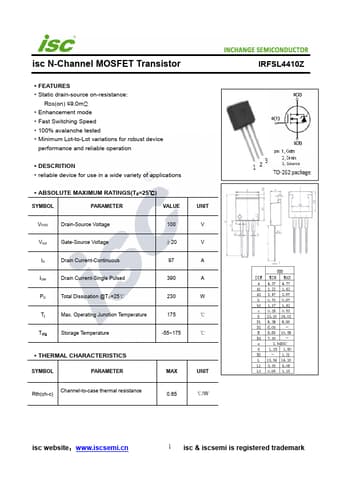

IRFSL4410Z Datasheet Preview — Preview of IRFSL4410Z PDF

Datasheet Specifications

Part number: IRFSL4410Z
Manufacturer: INCHANGE
File Size: 257.36 KB
Datasheet: IRFSL4410Z-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤9.0mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 97 IDM Drain Current-Single Pulsed 390 PD Total Dissipation @TC=25℃ 230 Tj Max. Operating Junction Temperature 175 Tstg Storage T
