IRFSL4510 Datasheet - INCHANGE

IRFSL4510, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

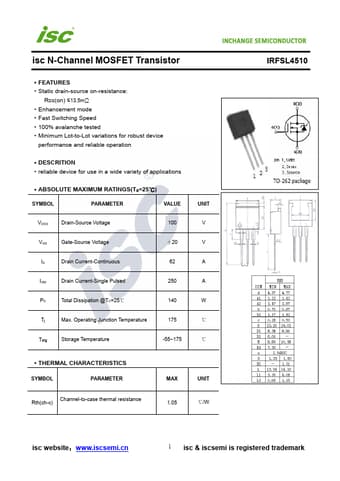

datasheet Preview Page 1 from Datasheet4u.com

IRFSL4510-INCHANGE.pdf

IRFSL4510 Datasheet Preview — Preview of IRFSL4510 PDF

Datasheet Details

Part number:

IRFSL4510

Manufacturer:

INCHANGE

File Size:

282.02 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤13.5mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 62 IDM Drain Current-Single Pulsed 250 PD Total Dissipation @TC=25℃ 140 Tj Max. Operating Junction Temperature 175 Tstg Storage T
