IRFSL4510PbF Power MOSFET

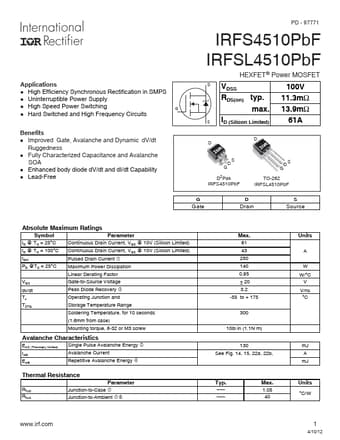

Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits G Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free PD - 97771 IRFS4510PbF IRFSL4510PbF HEXFET® Power MOSFET D VDSS 100V RDS(on) typ. 11.3mΩ max. 13.9mΩ S ID (Silicon Limited) 61A D D DS G .

IRFSL4510PbF Features

* lowable avalanche current. 7. ΔT = Allowable rise in junction temperature, not to exceed Tjmax (assumed as 25°C in Figure 14, 15). tav = Average time in avalanche. D = Duty cycle in avalanche = tav

* f ZthJC(D, tav) = Transient thermal resistance, see Figures 13) PD (ave) = 1/2 ( 1.3

* BV

* I
