IRFZ48NS - N-Channel MOSFET

IRFZ48NS Description

isc N-Channel MOSFET Transistor *.

IRFZ48NS Features

* With TO-263( D2PAK ) packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFZ48NS Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 55 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous;Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 64 45 210 PD Total Dissipation 130 Tj Operati

📥 Download Datasheet

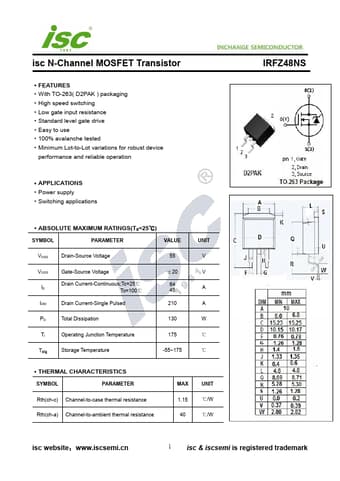

Preview of IRFZ48NS PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFZ48NS
Manufacturer
INCHANGE
File Size
247.50 KB
Datasheet
IRFZ48NS-INCHANGE.pdf
Description
N-Channel MOSFET
