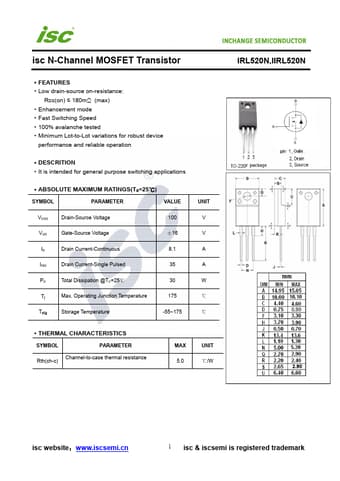

IRL520N Datasheet, mosfet equivalent, INCHANGE

IRL520N Features

• Mosfet
• Low drain-source on-resistance: RDS(on) ≤ 180mΩ (max)
• Enhancement mode
• Fast Switching Speed
• 100% avalanche tested
• Minimum Lot-to-Lot variati

PDF File Details

Part number:

IRL520N

Manufacturer:

INCHANGE

File Size:

250.28kb

Download:

📄 Datasheet

Description:

To-220f n-channel mosfet.

IRL520N Application

• Applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±16 I
