IXFA220N06T3 Datasheet, Mosfet, INCHANGE

IXFA220N06T3 Features

  • Mosfet
  • Static drain-source on-resistance: RDS(on) ≤ 4mΩ@VGS=10V
  • Fully characterized avalanche voltage and current
  • 100% avalanche tested
  • Minimum Lot-to-Lot v

PDF File Details

Part number:

IXFA220N06T3

Manufacturer:

INCHANGE

File Size:

250.71kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

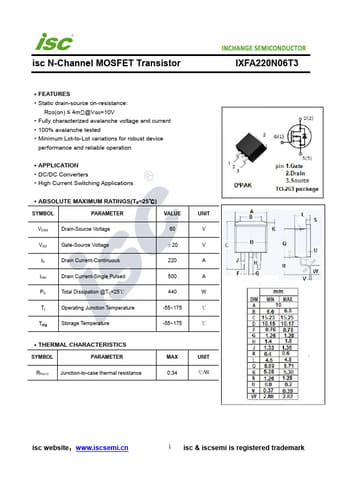

Datasheet Preview: IXFA220N06T3 📥 Download PDF (250.71kb)
Page 2 of IXFA220N06T3

IXFA220N06T3 Application

  • Applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGS Gate-Source Voltage ±20 ID
