IXFA230N075T2 - Power MOSFET

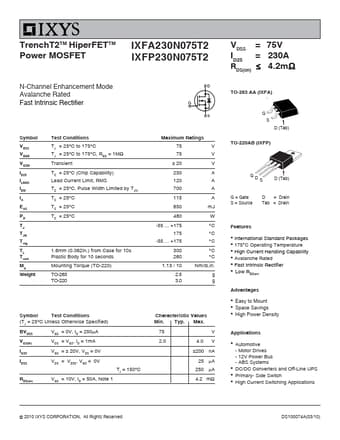

TrenchT2TM HiperFETTM Power MOSFET IXFA230N075T2 IXFP230N075T2 VDSS ID25 RDS(on) = 75V = 230A ≤ 4.2mΩ N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier TO-263 AA (IXFA) G S D (Tab) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL Tsold Md Weight www.DataSheet4U.net Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C (Chip Capability) Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C

IXFA230N075T2 Features

* z z 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 seconds Mounting Torque (TO-220) TO-263 TO-220 300 260 1.13 / 10 2.5 3.0 International Standard Packages 175°C Operating Temperature z High Current Handling Capability z Avalanche Rated z Fast Intrinsic Rectifier z Low RDS(on) Advantages
