IXFP72N20X3M Datasheet - INCHANGE

IXFP72N20X3M, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

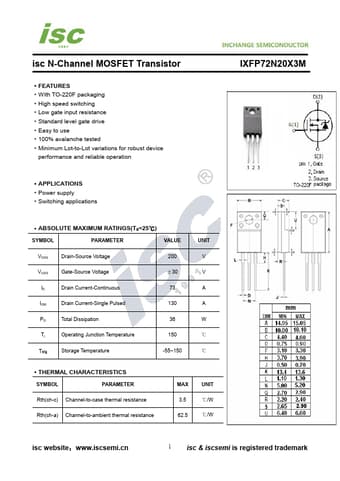

datasheet Preview Page 1 from Datasheet4u.com

IXFP72N20X3M-INCHANGE.pdf

IXFP72N20X3M Datasheet Preview — Preview of IXFP72N20X3M PDF

Datasheet Details

Part number:

IXFP72N20X3M

Manufacturer:

INCHANGE

File Size:

250.43 KB

Description:

N-Channel MOSFET

Features

* With TO-220F packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGSS Gate-Source Voltage ±30 ID Drain Current-Continuous 73 IDM Drain Current-Single Pulsed 130 PD Total Dissipation 36 Tj Operating Junction
