IXTP20N65X Datasheet - INCHANGE

IXTP20N65X, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

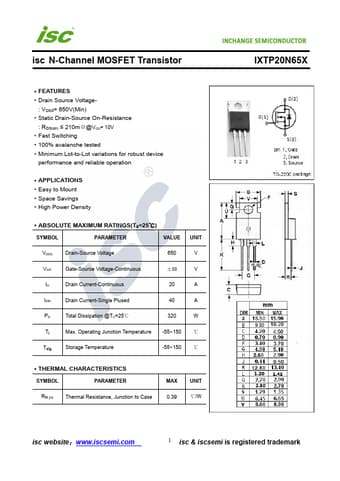

datasheet Preview Page 1 from Datasheet4u.com

IXTP20N65X-INCHANGE.pdf

IXTP20N65X Datasheet Preview — Preview of IXTP20N65X PDF

Datasheet Details

Part number:

IXTP20N65X

Manufacturer:

INCHANGE

File Size:

247.42 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) ≤ 210mΩ@VGS= 10V
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Easy to Mount
* Space Savings
* High Power Density
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 20 A IDM Drain Current-Single Plused 40 A PD Tot
