IXTP220N055T Power MOSFET

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA220N055T IXTP220N055T VDSS = ID25 = RDS(on) ≤ 55 220 4.0 V A mΩ Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25° C to 175° C TJ = 25° C to 175° C; RGS = 1 MΩ Transient TC = 25° C Lead Current Limit, RMS TC = 25° C, pulse width limited by TJM TC = 25° C TC = 25° C IS ≤IDM, di/dt ≤100 A/µs, VDD ≤VDSS TJ ≤175° C, RG = 5 Ω TC = 2.

IXTP220N055T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 ° C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - High Side Switch - 12V Battery - ABS Systems DC/DC

IXTA220N055T-IXYS.pdf

This datasheet PDF includes multiple part numbers: IXTP220N055T, IXTA220N055T. Please refer to the document for exact specifications by model.

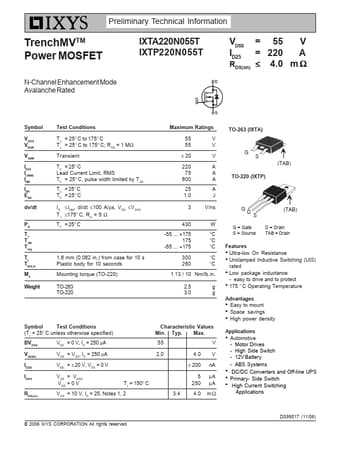

IXTP220N055T Datasheet Preview Page 2 IXTP220N055T Datasheet Preview Page 3

Datasheet Details

Part number:

IXTP220N055T, IXTA220N055T

Manufacturer:

IXYS

File Size:

205.63 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTP220N055T, IXTA220N055T.
Please refer to the document for exact specifications by model.
