IXTP270N04T4 N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor IXTP270N04T4 *.

📥 Download Datasheet

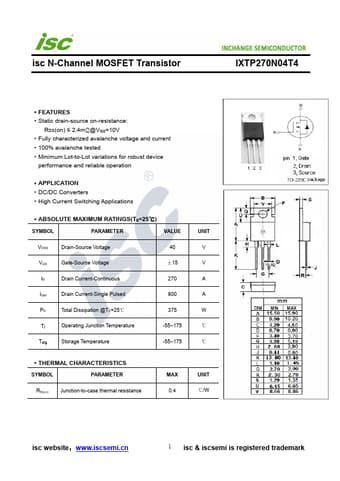

IXTP270N04T4 Datasheet Preview — Preview of IXTP270N04T4 PDF

Datasheet Specifications

Part number: IXTP270N04T4
Manufacturer: INCHANGE
File Size: 246.56 KB
Datasheet: IXTP270N04T4-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 2.4mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGS Gate-Source Voltage ±15 ID Drain Current-Continuous 270 IDM Drain Current-Single Pulsed 800 PD Total Dissipation @TC=25℃ 375 Tj Operating Junction Temperature -55~175 Tstg Storage Te
