KT829A - NPN Transistor

KT829A Description

isc Silicon NPN Darlington Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min). High DC Current Gain : hFE= 750(Min) @IC= 3A. Low Saturation Voltage. Min.

KT829A Applications

* Designed for use as complementary AF push-pull output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 8 A IC

📥 Download Datasheet

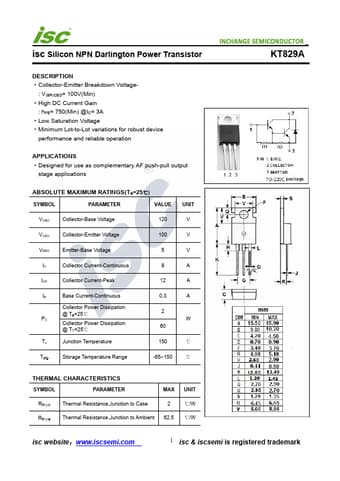

Preview of KT829A PDF
datasheet Preview Page 2

Datasheet Details

Part number
KT829A
Manufacturer
INCHANGE
File Size
208.86 KB
Datasheet
KT829A-INCHANGE.pdf
Description
NPN Transistor
