MD1803DFP NPN Transistor

INCHANGE

MD1803DFP Description

isc Silicon NPN Power Transistor .
Low base-drive requirements. Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min). 100% avalanche tested. Minimum Lot-to-L.

MD1803DFP Applications

* Horizontal deflection output for TV ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 10 V IC Collector Current- Continuous 10 A ICM Collector peak current (tp

📥 Download Datasheet

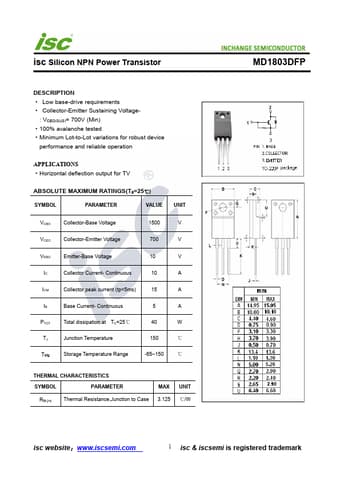

MD1803DFP Datasheet Preview — Preview of MD1803DFP PDF

Datasheet Details

Part number: MD1803DFP
Manufacturer: INCHANGE
File Size: 210.92 KB
Datasheet: MD1803DFP-INCHANGE.pdf
Description: NPN Transistor
