MJE13005D - TO-252 NPN Transistor

Product Overview

📥 Download Datasheet

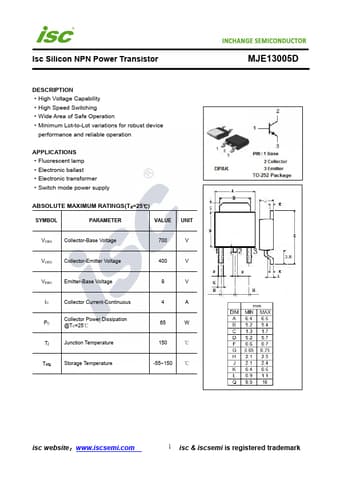

Datasheet preview – MJE13005D

Datasheet Details

Part number MJE13005D
Manufacturer INCHANGE
File Size 216.92 KB
Description TO-252 NPN Transistor
Datasheet download datasheet MJE13005D Datasheet
Additional preview pages of the MJE13005D datasheet.

Product details

Description

High Voltage Capability High Speed Switching Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Fluorescent lamp Electronic ballast Electronic transformer Switch mode power supply ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 700 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 9 V IC Collector Current-Contin
