R6504KNJ - N-Channel MOSFET

R6504KNJ Description

isc N-Channel MOSFET Transistor R6504KNJ .
Designed for use in switch mode power supplies and general purpose applications.

R6504KNJ Features

* Drain Current
* ID= 4.0A@ TC=25℃
* Drain Source Voltage- : VDSS=650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 1.05Ω(Max)
* 100% avalanche tested

R6504KNJ Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 4.0 A IDM Drain Current-Single Pluse 12 A PD Total Dissipation @TC=25℃ 58 W TJ Max. Operating Junction Temperat

📥 Download Datasheet

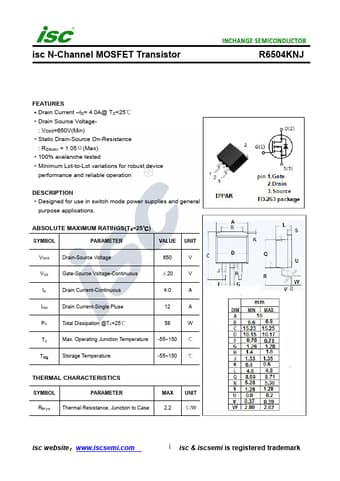

Preview of R6504KNJ PDF
datasheet Preview Page 2

Datasheet Details

Part number
R6504KNJ
Manufacturer
INCHANGE
File Size
250.67 KB
Datasheet
R6504KNJ-INCHANGE.pdf
Description
N-Channel MOSFET
