SPI11N60S5 - N-Channel MOSFET

SPI11N60S5 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor SPI11N60S5 *.

SPI11N60S5 Features

* Static drain-source on-resistance: RDS(on) ≤3mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

SPI11N60S5 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 11 IDM Drain Current-Single Pulsed 22 PD Total Dissipation @TC=25℃ 125 Tj Max. Operating Junction Temperature -55~150 Tstg Storag

📥 Download Datasheet

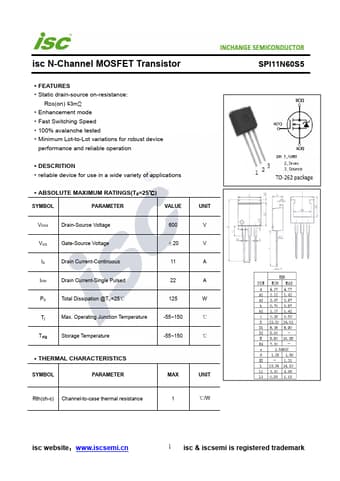

Preview of SPI11N60S5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SPI11N60S5
Manufacturer
INCHANGE
File Size
256.39 KB
Datasheet
SPI11N60S5-INCHANGE.pdf
Description
N-Channel MOSFET
