STF28NM60ND - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

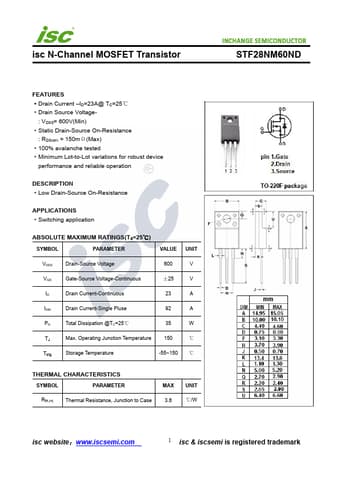

STF28NM60ND Datasheet Preview — Preview of STF28NM60ND PDF

Datasheet Details

Part number	STF28NM60ND
Manufacturer	INCHANGE
File Size	261.98 KB
Description	N-Channel MOSFET
Datasheet	STF28NM60ND-INCHANGE.pdf

STF28NM60ND Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 23 A IDM Drain Current-Single Pluse 92 A PD Total Dissipation @TC=25℃ 35 W TJ Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Ju

Features

Drain Current.
ID=23A@ TC=25℃.
Drain Source Voltage- : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 150mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
