STF28N60DM2

N-CHANNEL POWER MOSFET

STF28N60DM2 Features

* Order code STF28N60DM2 VDS @ TJmax. 650 V RDS(on) max. 0.16 Ω ID PTOT 21 A 30 W 3 2 1 TO-220FP Figure 1: Internal schematic diagram

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-resistance

* 100% avalanche tested

* Extremely high dv/dt

STF28N60DM2 General Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shi.

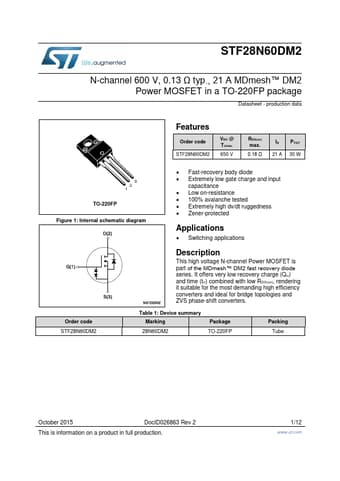

STF28N60DM2 Datasheet (575.22 KB)
