STF28NM60ND N-Channel MOSFET

STF28NM60ND Description

STB28NM60ND, STF28NM60ND, STP28NM60ND, STW28NM60ND N-channel 600 V, 0.13 Ω typ., 23 A FDmesh™ II Power MOSFETs in D²PAK, TO-220FP, TO-220 and TO-247 p.
These FDmesh™ II Power MOSFETs with 6  intrinsic fast-recovery body diode are produced using the second generation of MDmesh™ $0Y techno.

STF28NM60ND Features

* Order codes VDS @ TJ max. RDS(on) max ID STB28NM60ND STF28NM60ND 650 V STP28NM60ND 0.150 Ω 23 A STW28NM60ND
* Intrinsic fast-recovery body diode
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance
* Extremely h

📥 Download Datasheet

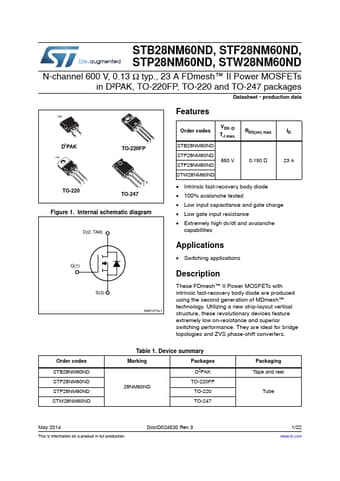

Preview of STF28NM60ND PDF
datasheet Preview Page 2 datasheet Preview Page 3
