STTA9012TV2 Datasheet, Diode, INCHANGE

STTA9012TV2 Features

  • Diode
  • High surge current capability
  • Wide current range
  • High voltage ratings up to 1200V
  • Minimum Lot-to-Lot variations for robust device performance and rel

PDF File Details

Part number:

STTA9012TV2

Manufacturer:

INCHANGE

File Size:

255.40kb

Download:

📄 Datasheet

Description:

Ultrafast high voltage diode.

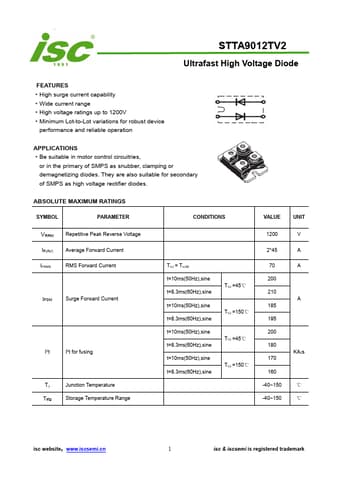

Datasheet Preview: STTA9012TV2 📥 Download PDF (255.40kb)
Page 2 of STTA9012TV2 Page 3 of STTA9012TV2

STTA9012TV2 Application

  • Applications
  • Be suitable in motor control circuitries, or in the primary of SMPS as snubber, clamping or demagnetizing diodes. They are als
