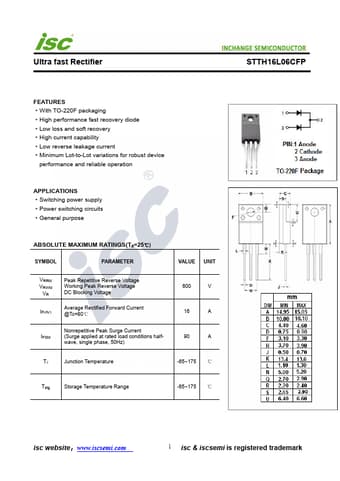

Ultra fast Rectifier
INCHANGE Semiconductor
STTH16L06CFP
FEATURES ·With TO-220F packaging ·High performance fast recovery diode ·Low loss and soft recovery ·High current capability ·Low reverse leakage current ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Switching power supply ·Power switching circuits ·General purpose
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE UNIT
VRRM VRWM
VR
IF(AV)
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Average Rectified Forward Current @Tc=80℃
Nonrepetitive Peak Surge Current
IFSM
(Surge applied at rated load conditions half-
wave, single phase, 50Hz)
600
V
16
A
90
A
TJ
Junction Temperature
-65~175 ℃
Tstg
Storage Temperature Range
-65~17
STTH16L06CFP Datasheet
