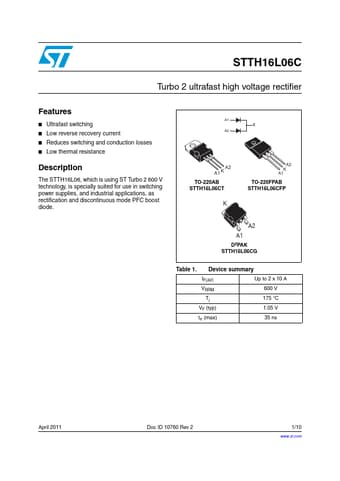

STTH16L06C
Turbo 2 ultrafast high voltage rectifier
Features
■ Ultrafast switching ■ Low reverse recovery current ■ Reduces switching and conduction losses ■ Low thermal resistance
Description
The STTH16L06, which is using ST Turbo 2 600 V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode.
A1 K
A2
A2 A1 K TO-220AB STTH16L06CT
K
A2 K A1
TO-220FPAB STTH16L06CFP
A2
A1
D2PAK STTH16L06CG
Table 1. Device summary
IF(AV)
Up to 2 x 10 A
VRRM
600 V
Tj 175 °C
VF (typ)
1.05 V
trr (max)
35 ns
