STTH102 Datasheet, Diode, ST Microelectronics

STTH102 Features

  • Diode
  • Very low conduction losses
  • Negligible switching losses
  • Low forward and reverse recovery times
  • High junction temperature A K SMA (JEDEC DO-214AC)

PDF File Details

Part number:

STTH102

Manufacturer:

STMicroelectronics ↗

File Size:

87.56kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. The STTH102, which is using ST’s new 200 V planar technology, is specially suited for switching mode base drive and transistor circui

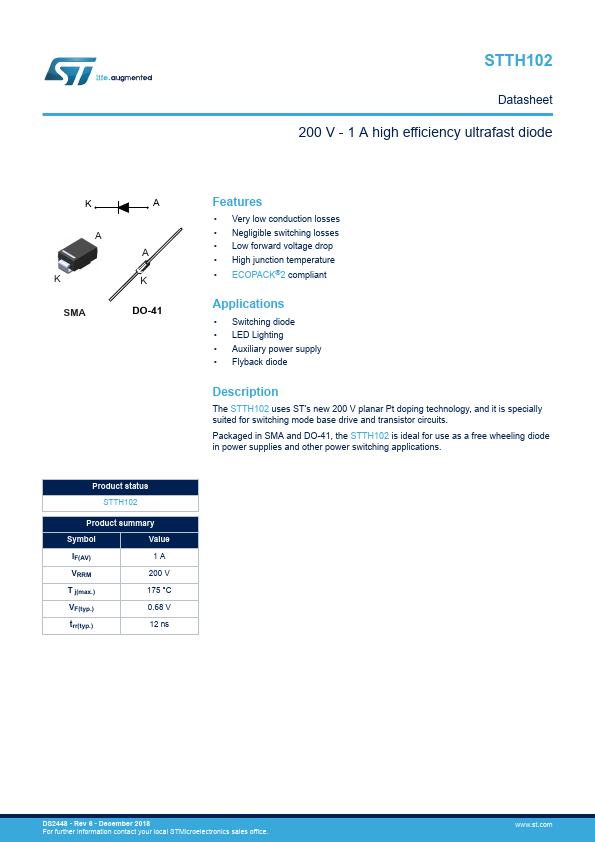

Datasheet Preview: STTH102 📥 Download PDF (87.56kb)
Page 2 of STTH102 Page 3 of STTH102

STTH102 Application

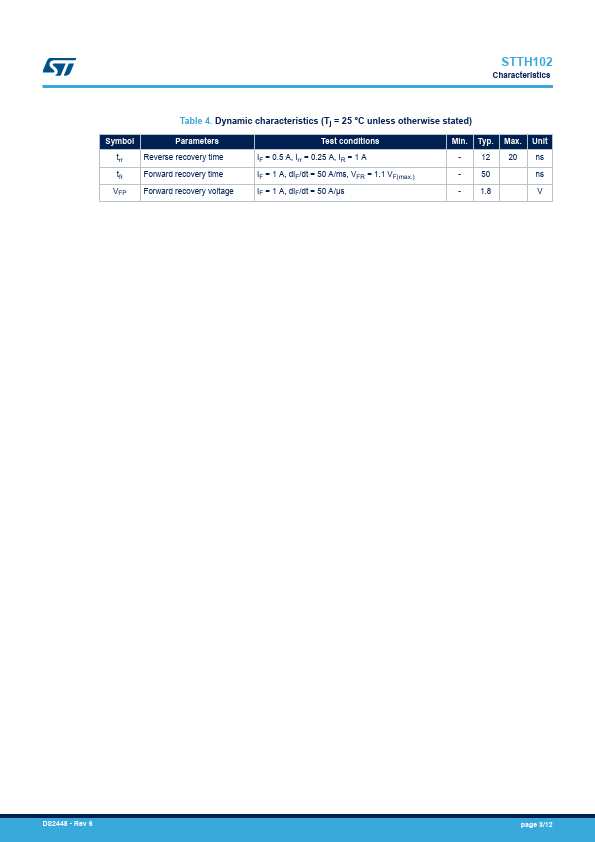

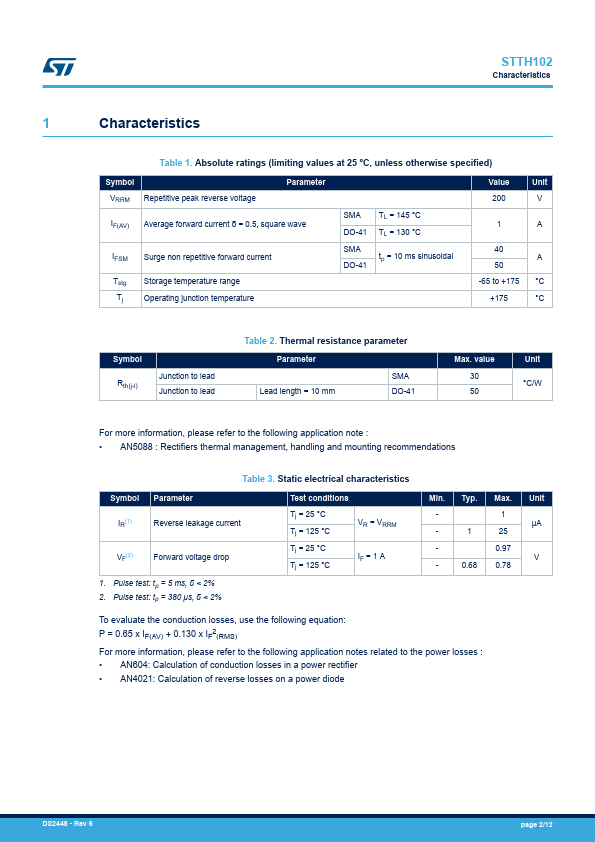

  • Applications Order codes Part Number STTH102A STTH102 STTH102RL Table 1. Absolute ratings (limiting values) Symbol Parameter VRRM IF(AV) IFSM
