STTH1002C Datasheet, Diode, ST Microelectronics

STTH1002C Features

  • Diode
  • Suited for SMPS
  • Low losses
  • Low forward and reverse recovery times
  • Insulated package: TO-220FPAB
      – Insulating voltage: 2000 VRMS s

PDF File Details

Part number:

STTH1002C

Manufacturer:

STMicroelectronics ↗

File Size:

180.04kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. Dual center tap rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in DPAK, D²PAK, TO-2

Datasheet Preview: STTH1002C 📥 Download PDF (180.04kb)
Page 2 of STTH1002C Page 3 of STTH1002C

STTH1002C Application

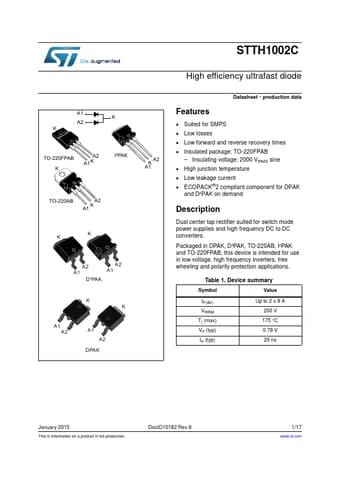

  • Applications Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) trr (typ) Up to 2 x 8 A 200 V 175 °C 0.78 V 20 ns January 201
