STTH108 - HIGH VOLTAGE ULTRAFAST RECTIFIER

Datasheet Summary

Description

The STTH108, which is using ST ultrafast high voltage planar technology, is specially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications.

Features

  • s s 1A 800 V 175 °C 1.25 V s s s Low forward voltage drop High reliability High surge current capability Soft switching for reduced EMI disturbances Planar technology DO-41 STTH108.

📥 Download Datasheet

Datasheet preview – STTH108

Datasheet Details

Part number STTH108
Manufacturer STMicroelectronics
File Size 46.90 KB
Description HIGH VOLTAGE ULTRAFAST RECTIFIER
Datasheet download datasheet STTH108 Datasheet
Additional preview pages of the STTH108 datasheet.

📁 Similar Datasheet

  • STTH10002 - Ultrafast recovery diode (STMicroelectronics)
  • STTH1002C-Y - Automotive high efficiency ultrafast diode (STMicroelectronics)
  • STTH1002CB - Ultrafast Rectifier (INCHANGE)
  • STTH1003S - High efficiency rectifier (STMicroelectronics)
  • STTH1003S-Y - Automotive 10A high efficiency ultrafast diode (STMicroelectronics)
  • STTH1004 - High efficiency rectifier (STMicroelectronics)
  • STTH1004FP - High efficiency rectifier (STMicroelectronics)
  • STTH1008DTI - 800V tandem hyperfast diode (STMicroelectronics)
  • STTH100W04C - Turbo 2 ultrafast high voltage rectifier (STMicroelectronics)
  • STTH10LCD06CG - Ultrafast Rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

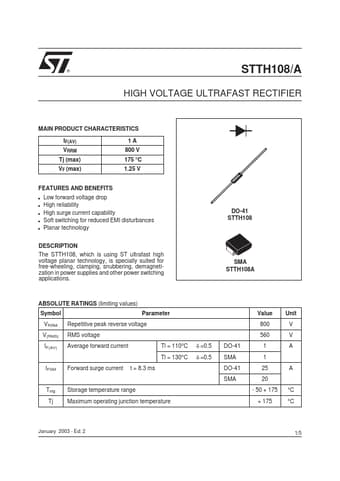

® STTH108/A HIGH VOLTAGE ULTRAFAST RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) FEATURES AND BENEFITS s s 1A 800 V 175 °C 1.25 V s s s Low forward voltage drop High reliability High surge current capability Soft switching for reduced EMI disturbances Planar technology DO-41 STTH108 DESCRIPTION The STTH108, which is using ST ultrafast high voltage planar technology, is specially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications. SMA STTH108A ABSOLUTE RATINGS (limiting values) Symbol VRRM V(RMS) IF(AV) Parameter Repetitive peak reverse voltage RMS voltage Average forward current Tl = 110°C Tl = 130°C IFSM Forward surge current t = 8.3 ms δ =0.5 δ =0.
