Part number:
STTH1003S
Manufacturer:
File Size:
88.62 KB
Description:
High efficiency rectifier.
STTH1003S Datasheet (88.62 KB)

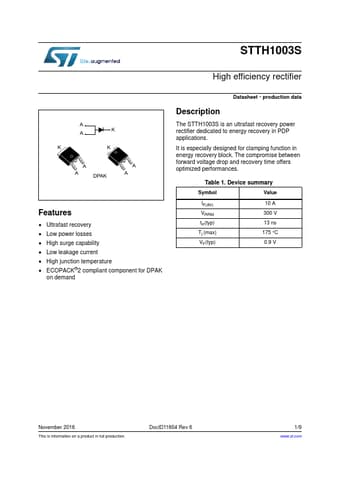

* 10 A 300 V 13 ns 175°C 0.9 V A K A K A A K A K A Ultrafast recovery Low power losses High surge capability Low leakage current High junction temperature TO-220FPAB STTH1003SFP K A D2PAK STTH1003SG K A DESCRIPTION The STTH1003S is an Ultrafast Recovery Power
STTH1003S Datasheet (88.62 KB)
STTH1003S
88.62 KB
High efficiency rectifier.
