STTH10002

Ultrafast recovery diode

STTH10002 Features

* A2 K2 A1 K1 K1 A2 A1 K2 Very low forward losses Low recovery time High surge current capability Insulated

* Insulating voltage = 2500 Vrms

* Capacitance = 45 pF A2 K2 K1 A2 Description The STTH10002 is a dual rectifier suited for welding equipment, and

STTH10002 General Description

The STTH10002 is a dual rectifier suited for welding equipment, and high power industrial applications. Packaged in ISOTOP, this device is intended for use in the secondary rectification of power converters. ISOTOP STTH10002TV1 ISOTOP STTH10002TV2 Order codes Part Number STTH10002TV1 STTH10002TV2.

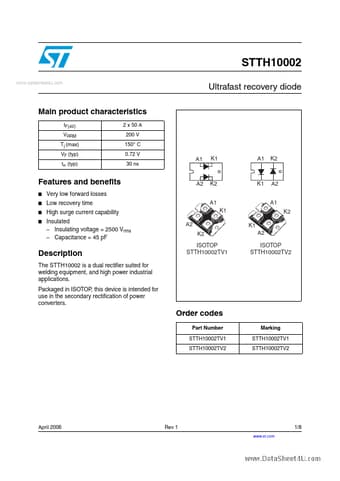

STTH10002 Datasheet (141.57 KB)

Preview of STTH10002 PDF

Datasheet Details

Part number:

STTH10002

Manufacturer:

STMicroelectronics ↗

File Size:

141.57 KB

Description:

Ultrafast recovery diode.
STTH10002 www.datasheet4u.com Ultrafast recovery diode Main product characteristics IF(AV) VRRM Tj (max) VF (typ) trr (typ) 2 x 50 A 200 V 150° C 0..
