STTH1008DTI Datasheet, Diode, STMicroelectronics

STTH1008DTI Features

  • Diode
  • High voltage rectifier
  • Tandem diodes in series
  • Very low switching losses
  • Insulated device with internal ceramic
  • Equal thermal condition

PDF File Details

Part number:

STTH1008DTI

Manufacturer:

STMicroelectronics ↗

File Size:

179.83kb

Download:

📄 Datasheet

Description:

800v tandem hyperfast diode. The STTH1008DTI is an ultrahigh performance diode composed of two 400 V dice in series. March 2013 This is information on a product

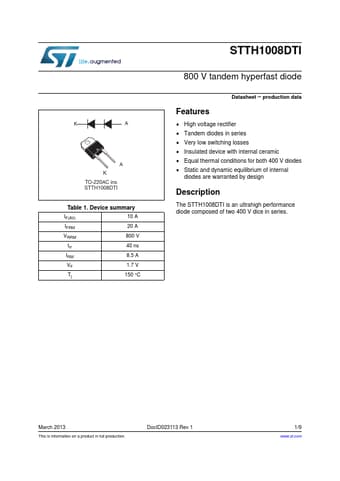

Datasheet Preview: STTH1008DTI 📥 Download PDF (179.83kb)
Page 2 of STTH1008DTI Page 3 of STTH1008DTI

STTH1008DTI Application

  • Applications SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS;

TAGS

STTH1008DTI
800V
tandem
hyperfast
diode
STMicroelectronics
