STTH1003S-Y Datasheet, Diode, STMicroelectronics

STTH1003S-Y Features

  • Diode
  • AEC-Q101 qualified
  • Ultrafast recovery
  • Low power losses
  • High surge capability
  • Low leakage current
  • High junction temperature

PDF File Details

Part number:

STTH1003S-Y

Manufacturer:

STMicroelectronics ↗

File Size:

212.26kb

Download:

📄 Datasheet

Description:

Automotive 10a high efficiency ultrafast diode. This STTH1003S-Y is an ultrafast recovery power rectifier dedicated to energy recovery in automotive applications. This STTH1003S-Y i

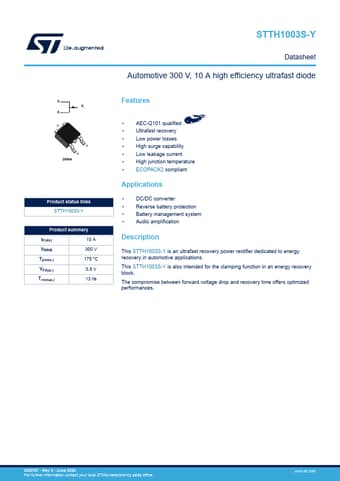

Datasheet Preview: STTH1003S-Y 📥 Download PDF (212.26kb)
Page 2 of STTH1003S-Y Page 3 of STTH1003S-Y

STTH1003S-Y Application

  • Applications
  • DC/DC converter
  • Reverse battery protection
  • Battery management system
  • Audio amplification Descri
