STTH106 - TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

Datasheet Summary

Description

The STTH106, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, inverters and as a free wheeling diode.

Features

  • s s 1A 600 V 175 °C 1.25 V 25 ns s s Ultrafast switching Low reverse recovery current Reduces switching & conduction losses Low thermal resistance DO-41 STTH106.

📥 Download Datasheet

Datasheet preview – STTH106

Datasheet Details

Part number STTH106
Manufacturer STMicroelectronics
File Size 49.61 KB
Description TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
Datasheet download datasheet STTH106 Datasheet
Additional preview pages of the STTH106 datasheet.

📁 Similar Datasheet

  • STTH10002 - Ultrafast recovery diode (STMicroelectronics)
  • STTH1002C-Y - Automotive high efficiency ultrafast diode (STMicroelectronics)
  • STTH1002CB - Ultrafast Rectifier (INCHANGE)
  • STTH1003S - High efficiency rectifier (STMicroelectronics)
  • STTH1003S-Y - Automotive 10A high efficiency ultrafast diode (STMicroelectronics)
  • STTH1004 - High efficiency rectifier (STMicroelectronics)
  • STTH1004FP - High efficiency rectifier (STMicroelectronics)
  • STTH1008DTI - 800V tandem hyperfast diode (STMicroelectronics)
  • STTH100W04C - Turbo 2 ultrafast high voltage rectifier (STMicroelectronics)
  • STTH10LCD06CG - Ultrafast Rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

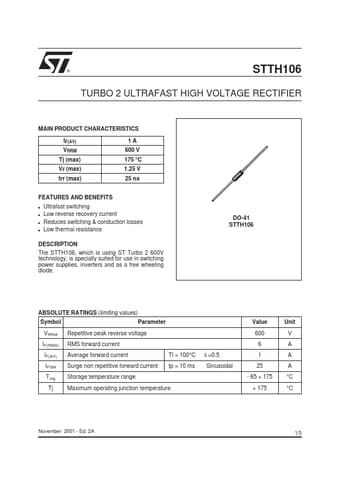

® STTH106 TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) trr (max) FEATURES AND BENEFITS s s 1A 600 V 175 °C 1.25 V 25 ns s s Ultrafast switching Low reverse recovery current Reduces switching & conduction losses Low thermal resistance DO-41 STTH106 DESCRIPTION The STTH106, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, inverters and as a free wheeling diode. ABSOLUTE RATINGS (limiting values) Symbol VRRM IF(RMS) IF(AV) IFSM Tstg Tj Parameter Repetitive peak reverse voltage RMS forward current Average forward current Surge non repetitive forward current Storage temperature range Maximum operating junction temperature Tl = 100°C tp = 10 ms δ =0.
