STTH1602C - High efficiency ultrafast diode

Datasheet Summary

Description

Dual center tap rectifier suited for switch mode power supply and high frequency DC to DC converters.

Packaged either in TO-220AB, TO-220FPAB and D2PAK, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Features

  • Suited for SMPS.
  • Low losses.
  • Low forward and reverse recovery time.
  • Low leakage current.
  • High junction temperature.
  • Insulated package: TO-220FPAB  insulating voltage: 2000 VRMS sine.

📥 Download Datasheet

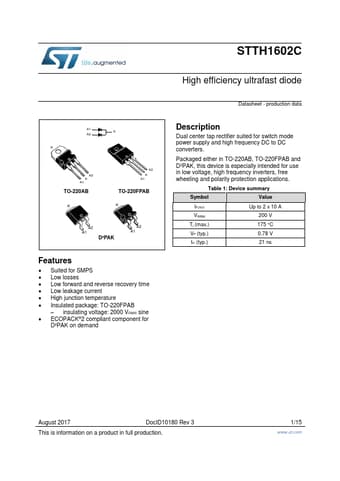

Datasheet preview – STTH1602C
