STTH16L06C-Y - Automotive turbo 2 ultrafast high voltage rectifier

Datasheet Summary

Description

The STTH16L06C-Y is developed using ST’s Turbo 2 600 V technology.

It’s specially suited for use in switching power supplies as rectifier and discontinuous mode PFC boost diode for automotive applications.

Table 1.

Features

  • AEC-Q101 qualified.
  • Ultrafast switching.
  • Low reverse recovery current.
  • Reduces switching and conduction losses.
  • Low thermal resistance.
  • PPAP capable.

📥 Download Datasheet

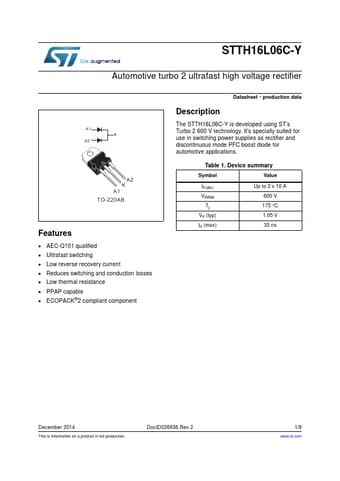

Datasheet preview – STTH16L06C-Y

Datasheet Details

Part number STTH16L06C-Y
Manufacturer STMicroelectronics
File Size 119.81 KB
Description Automotive turbo 2 ultrafast high voltage rectifier
Datasheet download datasheet STTH16L06C-Y Datasheet
Additional preview pages of the STTH16L06C-Y datasheet.

📁 Similar Datasheet

  • STTH16L06CFP - Ultrafast Rectifier (INCHANGE)
  • STTH16003TV - HIGH FREQUENCY SECONDARY RECTIFIER (ST Microelectronics)
  • STTH1602C - High efficiency ultrafast diode (ST Microelectronics)
  • STTH1602CT - Ultrafast Rectifier (INCHANGE)
  • STTH1002C - HIGH EFFICIENCY ULTRAFAST DIODE (ST Microelectronics)
  • STTH1002CB - Ultrafast Rectifier (INCHANGE)
  • STTH102 - 200V 1A high efficiency ultrafast diode (ST Microelectronics)
  • STTH102A - HIGH EFFICIENCY ULTRAFAST DIODE (ST Microelectronics)
  • STTH106 - TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER (ST Microelectronics)
  • STTH108 - HIGH VOLTAGE ULTRAFAST RECTIFIER (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STTH16L06C-Y Automotive turbo 2 ultrafast high voltage rectifier A1 K A2 A2 K A1 TO-220AB Features • AEC-Q101 qualified • Ultrafast switching • Low reverse recovery current • Reduces switching and conduction losses • Low thermal resistance • PPAP capable • ECOPACK®2 compliant component Datasheet - production data Description The STTH16L06C-Y is developed using ST’s Turbo 2 600 V technology. It’s specially suited for use in switching power supplies as rectifier and discontinuous mode PFC boost diode for automotive applications. Table 1. Device summary Symbol Value IF(AV) VRRM Tj VF (typ) trr (max) Up to 2 x 10 A 600 V 175 °C 1.05 V 35 ns December 2014 This is information on a product in full production. DocID026936 Rev 2 1/9 www.st.
