STTH16L06CT, STTH16L06C TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

STMicroelectronics

Description

STTH16L06C Turbo 2 ultrafast high voltage rectifier .
The STTH16L06, which is using ST Turbo 2 600 V technology, is specially suited for use in switching power supplies, and industrial applications, as re.

📥 Download Datasheet

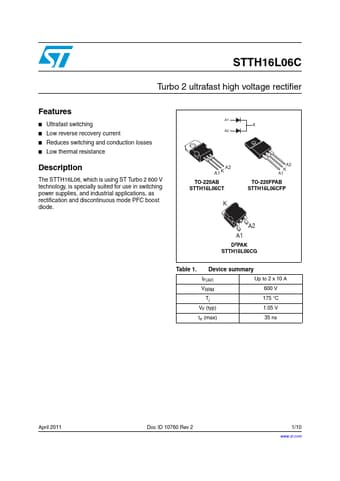

STTH16L06CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH16L06CT, STTH16L06C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STTH16L06CT, STTH16L06C
Manufacturer: STMicroelectronics ↗
File Size: 117.32 KB
Datasheet: STTH16L06C-STMicroelectronics.pdf
Description: TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: STTH16L06CT, STTH16L06C.
Please refer to the document for exact specifications by model.

Features

* Ultrafast switching
* Low reverse recovery current
* Reduces switching and conduction losses

Applications

* as rectification and discontinuous mode PFC boost diode. A1 K A2 A2 A1 K TO-220AB STTH16L06CT K A2 K A1 TO-220FPAB STTH16L06CFP A2 A1 D2PAK STTH16L06CG Table 1. Device summary IF(AV) Up to 2 x 10 A VRRM 600 V Tj 175 °C VF (typ) 1.05 V trr (max) 35 ns April 2011 Doc ID 10760 Rev 2 1
