STTH1602CG - High efficiency ultrafast diode

This page provides the datasheet information for the STTH1602CG, a member of the STTH1602C High efficiency ultrafast diode family.

Datasheet Summary

Description

Dual center tap rectifier suited for switch mode power supply and high frequency DC to DC converters.

Packaged either in TO-220AB, TO-220FPAB and D2PAK, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Features

  • Suited for SMPS.
  • Low losses.
  • Low forward and reverse recovery time.
  • Low leakage current.
  • High junction temperature.
  • Insulated package: TO-220FPAB  insulating voltage: 2000 VRMS sine.

📥 Download Datasheet

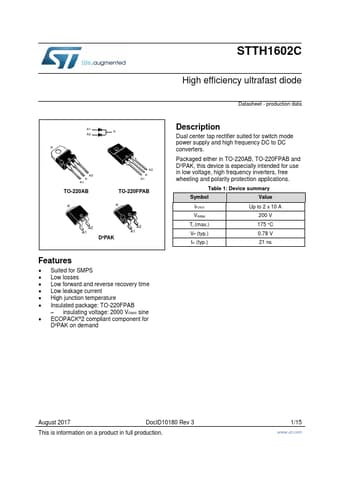

Datasheet preview – STTH1602CG
