STTH802D Datasheet, Rectifier, INCHANGE

STTH802D Features

  • Rectifier
  • With TO-220 packaging
  • Metal silicon junction, majority carrier conduction
  • Low power loss, high efficiency
  • Guardring for over voltage protection

PDF File Details

Part number:

STTH802D

Manufacturer:

INCHANGE

File Size:

172.79kb

Download:

📄 Datasheet

Description:

Ultra fast rectifier.

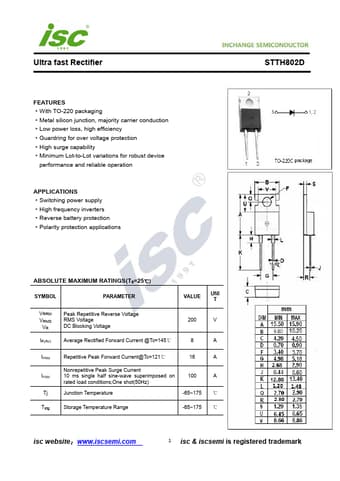

Datasheet Preview: STTH802D 📥 Download PDF (172.79kb)
Page 2 of STTH802D

STTH802D Application

  • Applications
  • Switching power supply
  • High frequency inverters
  • Reverse battery protection
  • Polarity protection appl

TAGS

STTH802D
Ultra
fast
Rectifier
INCHANGE
