STTH802-Y - Automotive ultrafast recovery diode

STMicroelectronics

📥 Download Datasheet

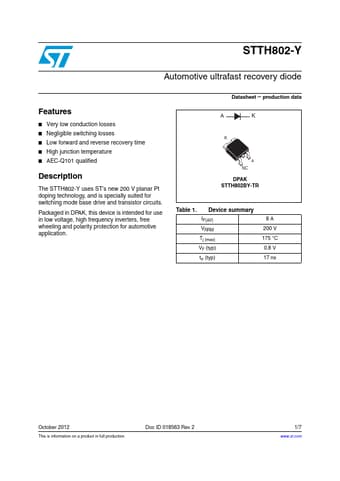

STTH802-Y Datasheet Preview — Preview of STTH802-Y PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STTH802-Y
Manufacturer	STMicroelectronics ↗
File Size	99.80 KB
Description	Automotive ultrafast recovery diode
Datasheet	STTH802-Y-STMicroelectronics.pdf

STTH802-Y Product details

Description

The STTH802-Y uses ST's new 200 V planar Pt doping technology, and is specially suited for switching mode base drive and transistor circuits.

Features

Very low conduction losses.
Negligible switching losses.
Low forward and reverse recovery time.
High junction temperature.
AEC-Q101 qualified.
