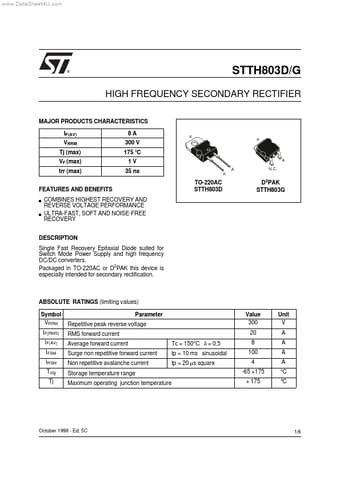

STTH803G Datasheet Preview Page 2 STTH803G Datasheet Preview Page 3

Datasheet Details

Part number:

STTH803G, STTH803D

Manufacturer:

STMicroelectronics ↗

File Size:

91.94 KB

Description:

High frequency secondary rectifier.

Note:

This datasheet PDF includes multiple part numbers: STTH803G, STTH803D.
Please refer to the document for exact specifications by model.

STTH803G, STTH803D, HIGH FREQUENCY SECONDARY RECTIFIER

Single Fast Recovery Epitaxial Diode suited for Switch Mode Power Supply and high frequency DC/DC converters.

Packaged in TO-220AC or D2PAK this device is especially intended for secondary rectification.

8A 300 V 175 °C 1V 35 ns TO-220AC STTH803D A K K K A N.C.

D2PAK STTH803G ABSOLUTE RATINGS (l
