STTH802SF Datasheet, Diode, STMicroelectronics

STTH802SF Features

  • Diode
  • Low profile design
      – package typical height of 1.1 mm typ.
  • Wettable flanks for automatic visual inspection
  • Very low conduction losses

PDF File Details

Part number:

STTH802SF

Manufacturer:

STMicroelectronics ↗

File Size:

325.23kb

Download:

📄 Datasheet

Description:

200v ultrafast recovery diode. This device is an ultrafast recovery diode optimized for switching mode base drive and transistor circuits. Packaged in PSMC (TO-277A

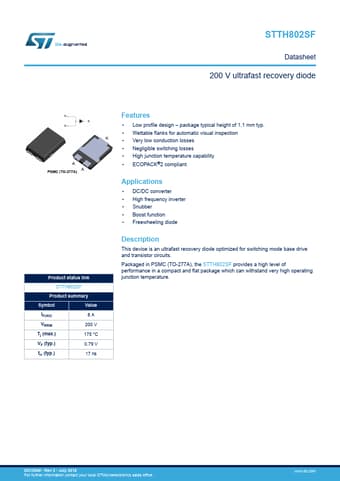

Datasheet Preview: STTH802SF 📥 Download PDF (325.23kb)
Page 2 of STTH802SF Page 3 of STTH802SF

STTH802SF Application

  • Applications
  • DC/DC converter
  • High frequency inverter
  • Snubber
  • Boost function
  • Freewheeling diode Des
