STTH802C Datasheet, Diode, ST Microelectronics

STTH802C Features

  • Diode
  • Suited for SMPS
  • Low losses
  • Low forward and reverse recovery time
  • High surge current capability
  • High junction temperature
  • ECOP

PDF File Details

Part number:

STTH802C

Manufacturer:

STMicroelectronics ↗

File Size:

156.26kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. Dual center tap rectifier suited for switched mode power supply and high frequency DC to DC converters. Packaged in DPAK, this device

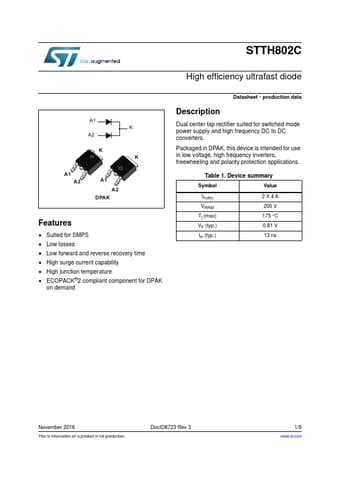

Datasheet Preview: STTH802C 📥 Download PDF (156.26kb)
Page 2 of STTH802C Page 3 of STTH802C

STTH802C Application

  • Applications Table 1. Device summary Symbol Value IF(AV) VRRM Tj VF (max) trr (typ) 2 X 4A 200 V 175 °C 0.95 V 13 ns November 2014 This is in
