STTH802CT Datasheet, Diode, STMicroelectronics

STTH802CT Features

• Diode s Suited for SMPS s Low losses s Low forward and reverse recovery times s High surge current capability s High junction temperature s Insulated package: TO-220FPAB DESCRIPTION Dual cent

PDF File Details

Part number:

STTH802CT

Manufacturer:

STMicroelectronics ↗

File Size:

105.36kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. Dual center tap rectifier suited for Switch Mode Power Supplies and High frequency DC to DC converters. Packaged in DPAK, TO-220AB or

STTH802CT Application

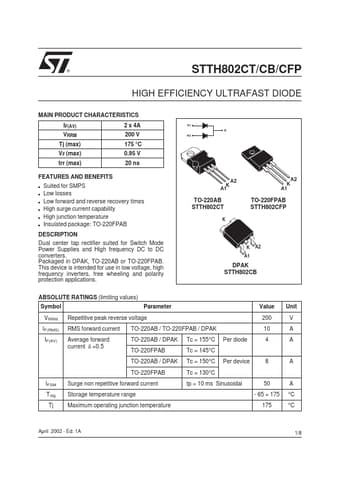

• Applications A1 K A2 A2 K A1 TO-220AB STTH802CT K A2 K A1 TO-220FPAB STTH802CFP K A2 A1 DPAK STTH802CB ABSOLUTE RATINGS (limiting values) Sym
