STTH2003CT Hight frequency secondary rectifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

Hight frequency secondary rectifier INCHANGE Semiconductor STTH2003CT .

📥 Download Datasheet

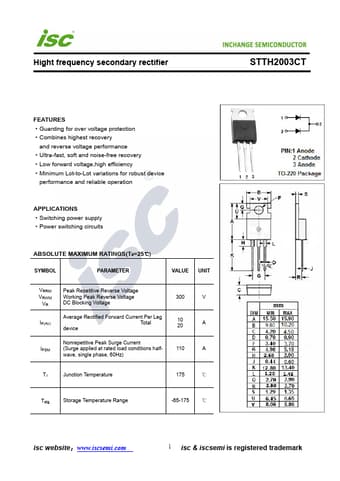

Preview of STTH2003CT PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
STTH2003CT
Manufacturer
INCHANGE
File Size
222.10 KB
Datasheet
STTH2003CT-INCHANGE.pdf
Description
Hight frequency secondary rectifier

Features

* Guarding for over voltage protection
* Combines highest recovery and reverse voltage performance
* Ultra-fast, soft and noise-free recovery
* Low forward voltage,high efficiency

Applications

* Switching power supply
* Power switching circuits ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 300 V IF(AV) Average Rectified Forward Current Per Leg Total device 10 20 A
