STTH20004TV1 Datasheet, Rectifier, ST Microelectronics

STTH20004TV1 Features

  • Rectifier
  • Up to 2 x 120 A 400 V 150°C 0.83 V 60 ns A1 A2 K1 K2 K1 A1 K2 A2 Ultrafast switching Low reverse current Low thermal resistance Reduces swit

PDF File Details

Part number:

STTH20004TV1

Manufacturer:

STMicroelectronics ↗

File Size:

168.77kb

Download:

📄 Datasheet

Description:

Ultrafast high voltage rectifier. The STTH20004TV1 uses ST new 400V technology and is specially suited for use in switching power supplies, welding equipment, and indu

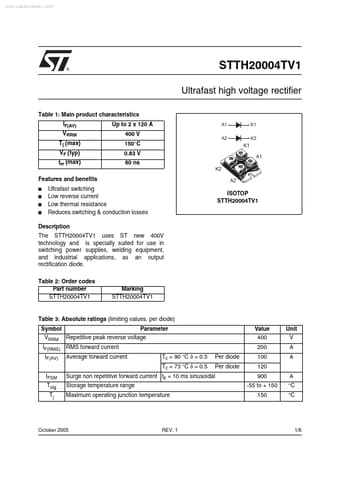

Datasheet Preview: STTH20004TV1 📥 Download PDF (168.77kb)
Page 2 of STTH20004TV1 Page 3 of STTH20004TV1

STTH20004TV1 Application

  • Applications as an output rectification diode. Table 2: Order codes Part number STTH20004TV1 Marking STTH20004TV1 Table 3: Absolute ratings (limi
