STTH20003TV Datasheet, Rectifier, ST Microelectronics

STTH20003TV Features

  • Rectifier
  • Combines highest recovery and reverse voltage performance
  • Ultrafast, soft and noise-free recovery
  • Package insulation voltage 2500 Vrms
  • low induct

PDF File Details

Part number:

STTH20003TV

Manufacturer:

STMicroelectronics ↗

File Size:

115.19kb

Download:

📄 Datasheet

Description:

Ultrafast high voltage rectifier. Dual rectifiers suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged in ISOTOP™, this device is inte

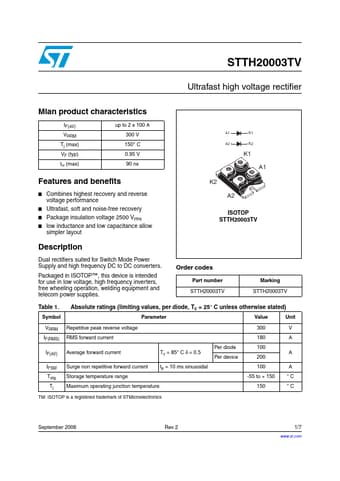

Datasheet Preview: STTH20003TV 📥 Download PDF (115.19kb)
Page 2 of STTH20003TV Page 3 of STTH20003TV
