STTH2002C Datasheet, Diode, ST Microelectronics

STTH2002C Features

  • Diode
  • Suited for SMPS
  • Low losses
  • Low forward and reverse recovery times
  • Low leakage current
  • High junction temperature
  • Insulated pac

PDF File Details

Part number:

STTH2002C

Manufacturer:

STMicroelectronics ↗

File Size:

431.35kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. Dual center tap rectifier suited for switch mode power supplies and high frequency DC/DC converters. Packaged in TO-220AB, TO-220FPA

Datasheet Preview: STTH2002C 📥 Download PDF (431.35kb)
Page 2 of STTH2002C Page 3 of STTH2002C

STTH2002C Application

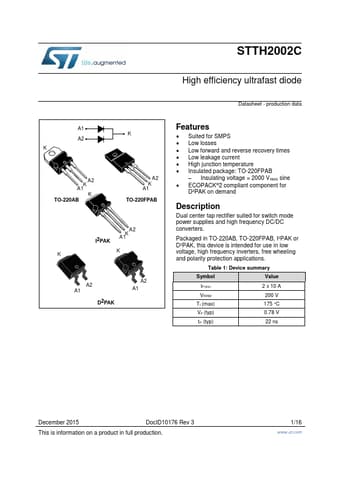

  • Applications Table 1: Device summary Symbol Value IF(AV) 2 x 10 A VRRM 200 V Tj (max) 175 °C VF (typ) 0.78 V trr (typ) 22 ns December
