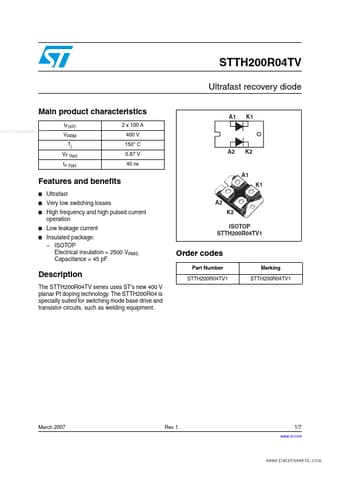

STTH200R04TV, Ultrafast recovery diode

The STTH200R04TV series uses ST's new 400 V planar Pt doping technology.

The STTH200R04 is specially suited for switching mode base drive and transistor circuits, such as welding equipment.

March 2007 Rev 1 1/7 www.st.com 7 Characteristics STTH200R04TV 1 Table 1.

Symbol VRRM VRSM IF(RMS) www.D

STTH200R04TV Features

* K1 A2 K2 ISOTOP STTH200R04TV1 Ultrafast Very low switching losses High frequency and high pulsed current operation Low leakage current Insulated package:

* ISOTOP Electrical insulation = 2500 VRMS Capacitance = 45 pF Order codes Part Number Marking STTH200R04
