STTH20002TV Datasheet, Rectifier, ST Microelectronics

STTH20002TV Features

  • Rectifier
  • Up to 2 x 120 A 200 V 150°C 0.75 V 41 ns K2 A1 A2 K1 K2 K1 A1 A2 Suited for SMPS Very Low Forward Losses Low recovery time High s

PDF File Details

Part number:

STTH20002TV

Manufacturer:

STMicroelectronics ↗

File Size:

135.13kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. Dual rectifier suited for welding equipment, high power industrial application. Packaged in Isotop, this device is intended for use i

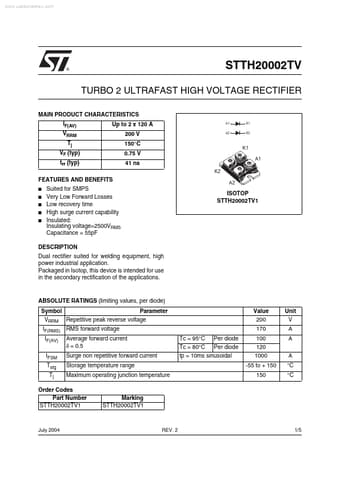

Datasheet Preview: STTH20002TV 📥 Download PDF (135.13kb)
Page 2 of STTH20002TV Page 3 of STTH20002TV

STTH20002TV Application

  • Applications ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter VRRM Repetitive peak reverse voltage IF(RMS) IF(AV) IFSM Tstg Tj RMS f
