BSS139 - Small-Signal-Transistor

INFINEON

📥 Download Datasheet

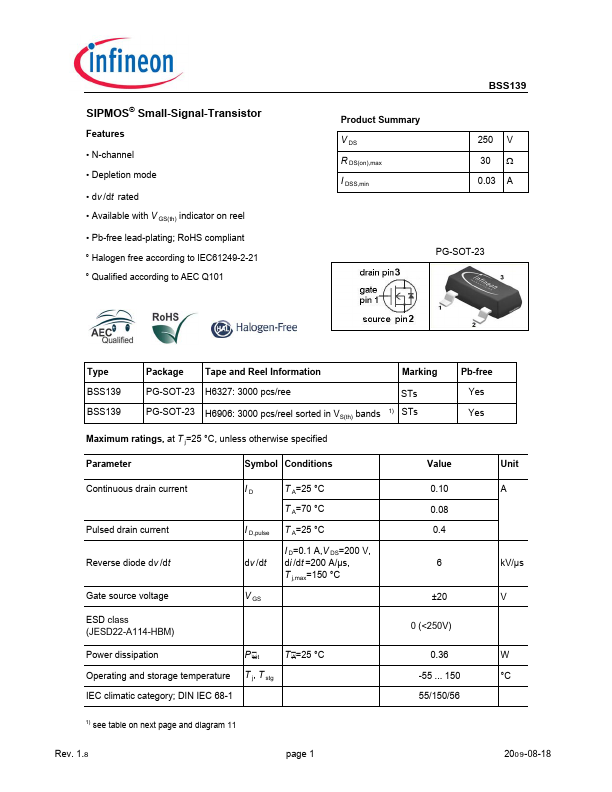

BSS139 Datasheet Preview — Preview of BSS139 PDF

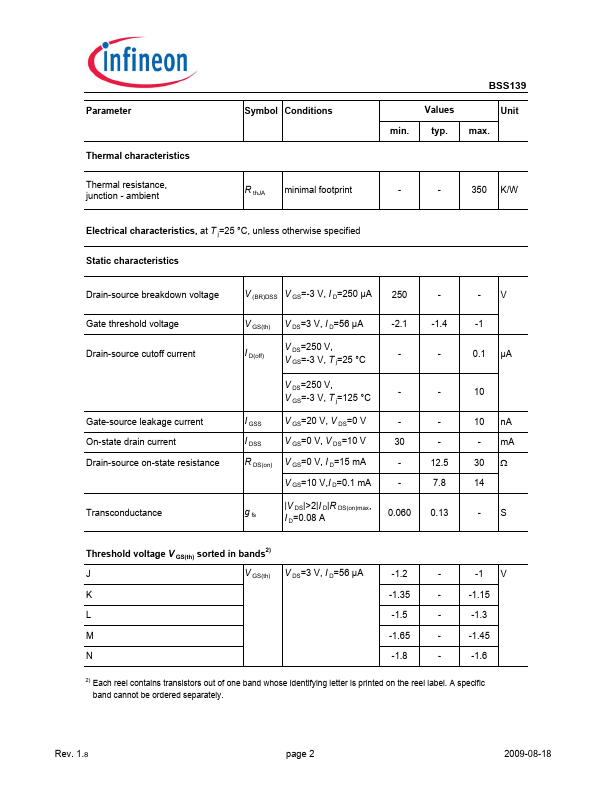

datasheet Preview Page 2

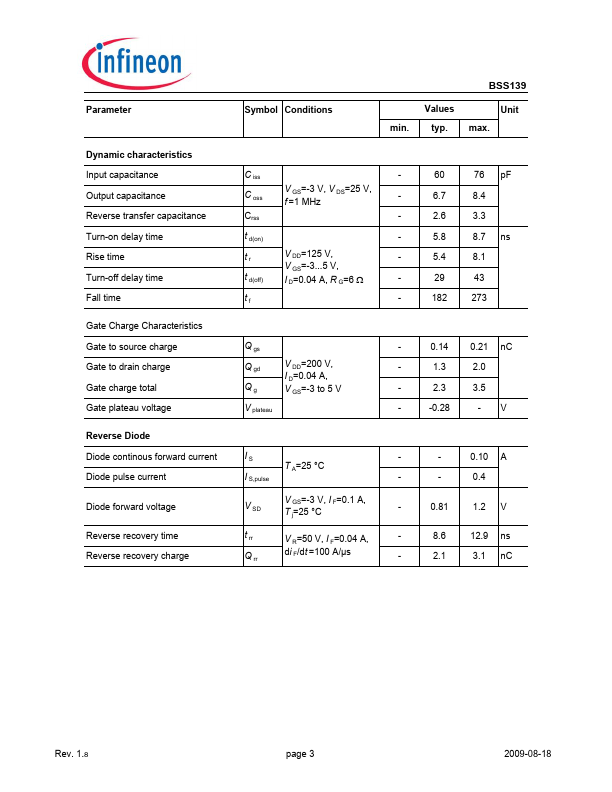

datasheet Preview Page 3

Datasheet Details

Part number	BSS139
Manufacturer	Infineon ↗
File Size	719.65 KB
Description	Small-Signal-Transistor
Datasheet	BSS139_INFINEON.pdf

BSS139 Product details

Features

N-channel.
Depletion mode.
dv /dt rated.
Available with V GS(th) indicator on reel.
Pb-free lead-plating; RoHS compliant ° Halogen free according to IEC61249-2-21 ° Qualified according to AEC Q101 Product Summary V DS R DS(on),max I DSS,min BSS139 250 V 30 Ω 0.03 A PG-SOT-23 Type BSS139 BSS139 Package Tape and Reel Information Marking PG-SOT-23 H6327: 3000 pcs/ree STs PG-SOT-23 H6906: 3000 pcs/reel sorted in VS(th) bands 1) STs Maximum rati.
