BSS192P - OptiMOS -P Small-Signal-Transistor

Datasheet Summary

Description

and charts stated herein.

Infineon Technologies is an approved CECC manufacturer.

📥 Download Datasheet

Datasheet preview – BSS192P

Datasheet Details

Part number BSS192P
Manufacturer Infineon
File Size 79.38 KB
Description OptiMOS -P Small-Signal-Transistor
Datasheet download datasheet BSS192P Datasheet
Additional preview pages of the BSS192P datasheet.

📁 Similar Datasheet

  • BSS192 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
  • BSS192 - P-channel enhancement mode vertical D-MOS transistor (NXP)
  • BSS192 - P-channel vertical D-MOS transistor (nexperia)
  • BSS100 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
  • BSS100 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • BSS101 - SIPMOS Small-Signal Transistor (Siemens Semiconductor)
  • BSS110 - P-Channel Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • BSS110 - SIPMOS Small-Signal Transistor (Siemens Semiconductor)
  • BSS110 - P-channel enhancement mode vertical D-MOS transistor (NXP)
  • BSS119 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
Other Datasheets by INFINEON
  • BSS119 - SIPMOS Small-Signal Transistor
  • BSS131 - SIPMOS Small-Signal-Transistor
  • BSS131I - Small Signal Power Transistor
  • BSS138I - Small-Signal Transistor
  • BSS138W - Small-Signal Transistor
  • BSS139 - Small-Signal-Transistor
  • BSS139I - Small-Signal Transistor
  • BSS169 - SIPMOS Small-Signal-Transistor

Full PDF Text Transcription

Click to expand full text

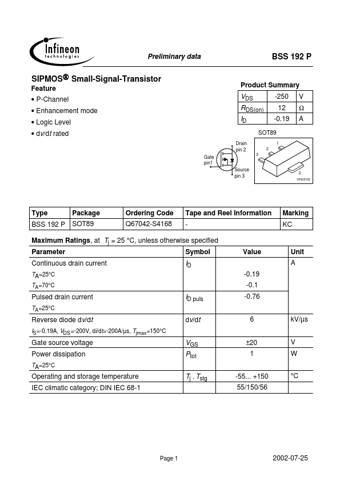

Preliminary data BSS 192 P SIPMOS Small-Signal-Transistor Feature • P-Channel • Enhancement mode • Logic Level • dv/dt rated Product Summary VDS RDS(on) ID -250 12 -0.19 SOT89 Drain pin 2 Gate pin1 Source pin 3 3 1 2 V Ω A 2 VPS05162 Type BSS 192 P Package SOT89 Ordering Code Q67042-S4168 Tape and Reel Information - Marking KC Maximum Ratings, at Tj = 25 °C, unless otherwise specified Parameter Continuous drain current TA=25°C TA=70°C Symbol ID Value -0.19 -0.1 Unit A Pulsed drain current TA=25°C ID puls dv/dt VGS Ptot Tj , Tstg -0.76 6 ±20 1 -55... +150 55/150/56 kV/µs V W °C Reverse diode dv/dt IS =-0.
