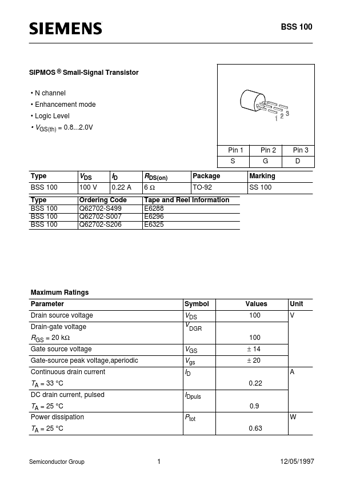

BSS 100
SIPMOS ® Small-Signal Transistor • N channel • Enhancement mode • Logic Level
• VGS(th) = 0.8...2.0V
Pin 1 S Type BSS 100 Type BSS 100 BSS 100 BSS 100 Pin 2 G Marking SS 100 Pin 3 D
VDS
100 V
ID
0.22 A
RDS(on)
6Ω
Package TO-92
Ordering Code Q62702-S499 Q62702-S007 Q62702-S206
Tape and Reel Information E6288 E6296 E6325
Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 100 100 Unit V
VDS V
DGR
RGS = 20 kΩ
Gate source voltage Gate-source peak voltage,aperiodic Continuous drain current
VGS Vgs ID
± 14 ± 20 A 0.22
TA = 33 °C
DC drain current, pulsed
IDpuls
0.9
TA = 25 °C
Power dissipation
Ptot
0.
