BSS135 Datasheet - Siemens Semiconductor Group

BSS135 SIPMOS Small-Signal Transistor

SIPMOS® Small-Signal Transistor BSS 135 q q q q q q q VDS 600 V ID 0.080 A RDS(on) 60 Ω N channel Depletion mode High dynamic resistance Available grouped in VGS(th) 1 2 3 Type Ordering Code Tape and Reel Information Pin Configuration Marking 1 G 2 D 3 S SS135 Package TO-92 BSS 135 Q67000-S237 E6325: 2000 pcs/carton; Ammopack Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Gate-source peak voltage, aperiodic Continuous drain current,.

BSS135_SiemensSemiconductorGroup.pdf

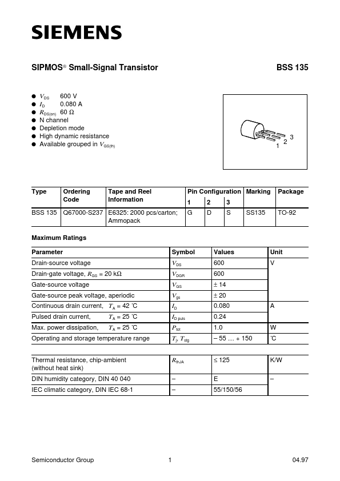

Preview of BSS135 PDF
BSS135 Datasheet Preview Page 2 BSS135 Datasheet Preview Page 3

Datasheet Details

Part number:

BSS135

Manufacturer:

Siemens Semiconductor Group

File Size:

318.57 KB

Description:

Sipmos small-signal transistor.
